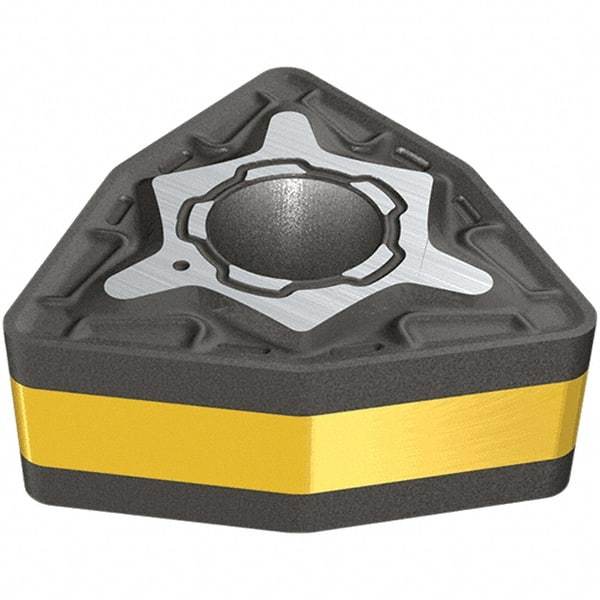

Iscar - WNMG431 M3P Grade IC8150 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Trigon, 12.7mm Inscr Circle, 4.76mm Thick, 0.4mm Corner Radius
Item #: 46677290
Brand: Iscar
Model #: 5567514
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 431 |
| Material | Carbide |
| Length (mm) | 8.70 |
| Length (Decimal Inch) | 0.3430 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1870 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC8150 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | M3P |
| ISO Number | WNMG 431-M3P |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5567514 |
| Primary Workpiece Material | K; M; P |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Shape | Trigon |
