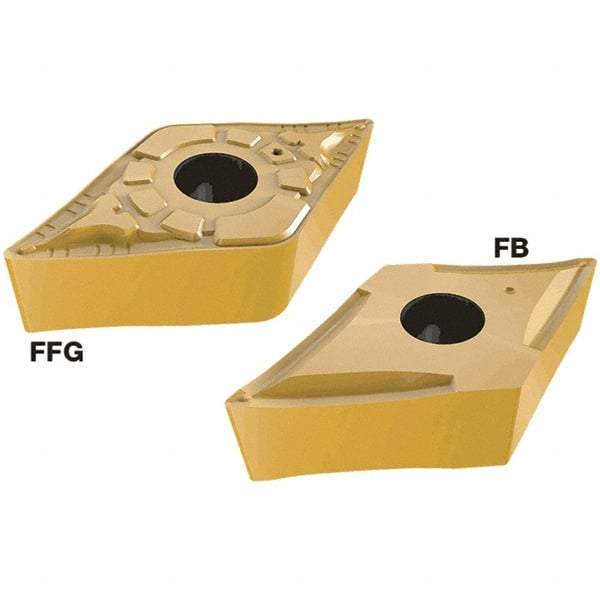

Iscar - DNMG441 FB Grade IC20N Carbide Turning Insert - Uncoated, 55° Diamond, 12.7mm Inscr Circle, 6.35mm Thick, 0.4mm Corner Radius
Item #: 46670501
Brand: Iscar
Model #: 5801497
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 441 |
| Material | Carbide |
| Length (mm) | 15.50 |
| Length (Decimal Inch) | 0.6100 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC20N |
| Coating | Uncoated |
| Chip Breaker | FB |
| ISO Number | DNMG 441-FB |
| Manufacturers Catalog Number | 5801497 |
| Primary Workpiece Material | M; P |
| Secondary Workpiece Material | None |
| Included Angle | 55 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Multi Use Application | Turning |
| Shape | Diamond |
