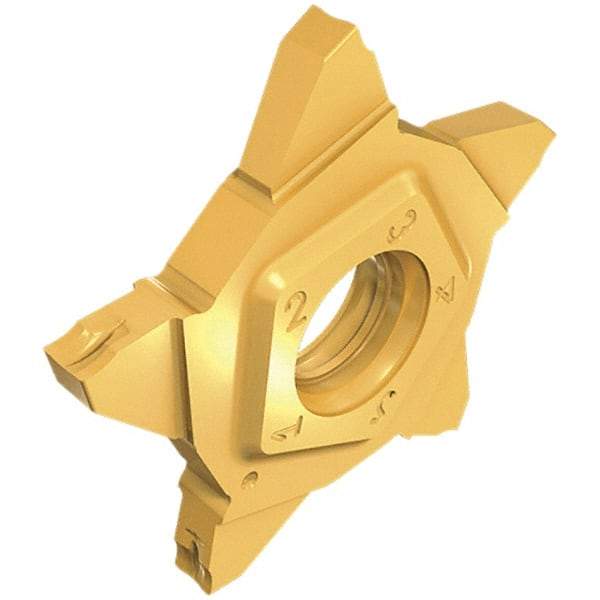

Iscar - 24N398PENTA Grade IC908, 3.98mm Cutting Width Carbide Grooving Insert - 6.2mm Max Depth of Cut, 0.2mm Corner Radius, TiAlN Finish
Item #: 46669610
Brand: Iscar
Model #: 6004800
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PENTA |
| Insert Size | 24N398 |
| Material | Carbide |
| Cutting Width (mm) | 3.98 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 6.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.2440 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Series | PentaCut |
| ISO Number | PENTA 24N398J020 IC908 |
| Manufacturers Catalog Number | 6004800 |
| Overall Width (mm) | 5.00 |
| Overall Width (Decimal Inch) | 0.1970 |
