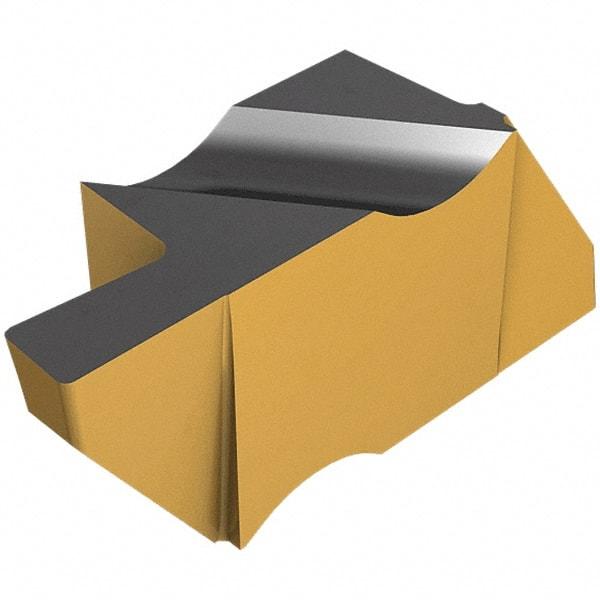

Iscar - 3094INGP Grade IC807, 2.39mm Cutting Width Carbide Grooving Insert - Left Hand, TiAlN/TiN Finish
Item #: 46666319
Brand: Iscar
Model #: 6411965
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | INGP |
| Insert Size | 3094 |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0940 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC807 |
| Coating | TiAlN/TiN |
| Insert Hand | Left Hand |
| Relief Angle | 3 |
| Multi-Use Application | Grooving; Parting; Turning |
| Coating Process | PVD |
| Series | Notch-Grip |
| Rake Angle | 5 |
| ISO Number | INGP3094L IC807 |
| Manufacturers Catalog Number | 6411965 |
| Insert Thickness (Decimal Inch) | 0.3440 |
| Insert Thickness (mm) | 8.7400 |
