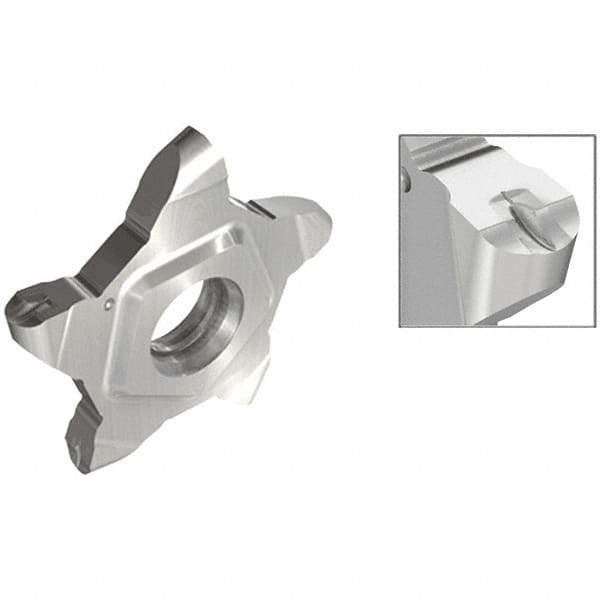

Iscar - 24N200PENTA Grade IC807G, 2mm Cutting Width Carbide Grooving Insert - 3mm Max Depth of Cut, 1mm Corner Radius, TiAlN/AlTiN/TiN Finish
Item #: 46654802
Brand: Iscar
Model #: 3304800
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PENTA |
| Insert Size | 24N200 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Manufacturer's Grade | IC807G |
| Coating | TiAlN/AlTiN/TiN |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0390 |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Series | PentaCut |
| ISO Number | PENTA 24N200J100 IC807G |
| Manufacturers Catalog Number | 3304800 |
