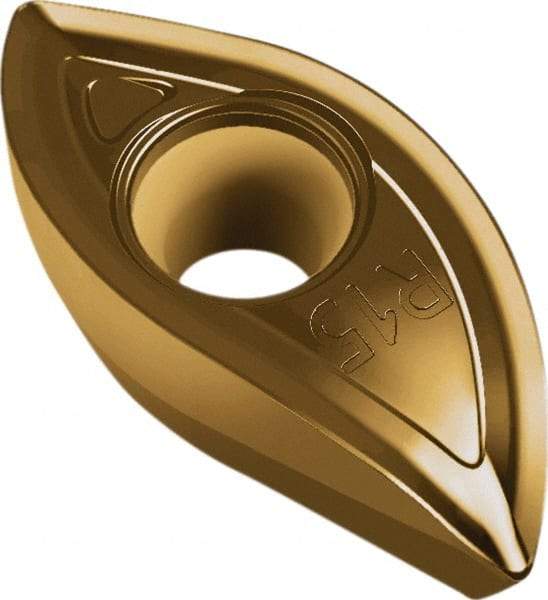

Walter - XDMT3207200 F55 Grade WKP35G Carbide Milling Insert - TiAlN/TiN Finish, 7.5mm Thick, 1mm Corner Radius
Item #: 46627527
Brand: Walter
Model #: 7347446
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XDMT |
| Insert Size | 3207200 |
| Material | Carbide |
| Material Grade | K35/P35/K35 |
| Manufacturer's Grade | WKP35G |
| Coating | TiAlN/TiN |
| Length (mm) | 31.95 |
| Thickness (mm) | 7.50 |
| Corner Radius (mm) | 1.00 |
| Relief Angle | 15.000 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Oval |
| Insert Hand | Right Hand |
| Chipbreaker | F55 |
| Manufacturers Catalog Number | XDMT3207200R-F55 WKP35G |
