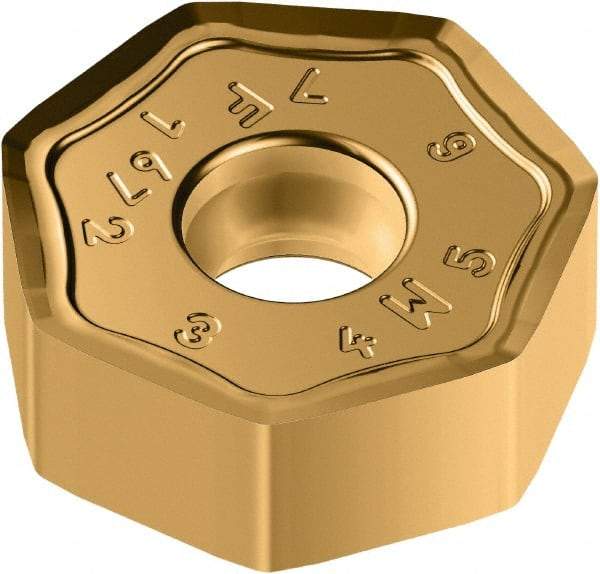

Walter - XNMU0705 F67 Grade WSM35S Carbide Milling Insert - TiAlN/Al2O3 Finish, 4.6mm Thick, 14.5mm Inscribed Circle, 0.8mm Corner Radius
Item #: 46626503
Brand: Walter
Model #: 7299626
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNMU |
| Insert Size | 0705 |
| Material | Carbide |
| Material Grade | S35/M35 |
| Manufacturer's Grade | WSM35S |
| Coating | TiAlN/Al2O3 |
| Length (mm) | 6.98 |
| Inscribed Circle (mm) | 14.50 |
| Thickness (mm) | 4.60 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.07 |
| Relief Angle | 0.000 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Proprietary |
| Insert Hand | Right Hand |
| Chipbreaker | F67 |
| Maximum Depth of Cut (mm) | 6.98 |
| Manufacturers Catalog Number | XNMU0705ANN-F67 WSM35S |
