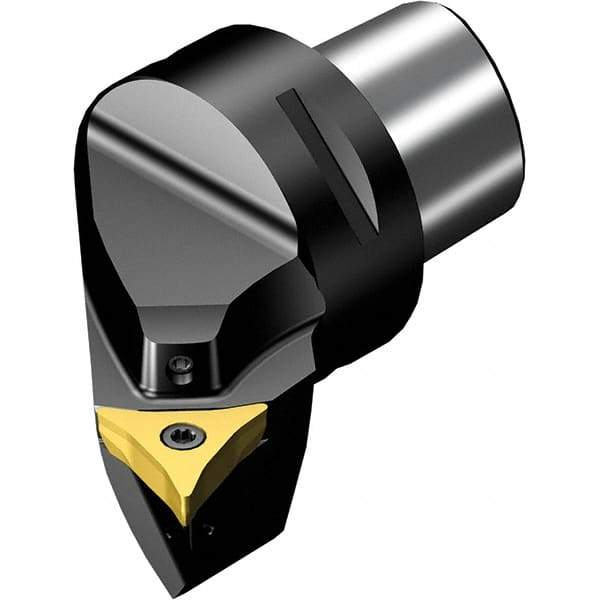

Sandvik Coromant - Left Hand Cut, Size C6, CP-A1108 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 50mm Ctr to Cutting Edge, Through Coolant, Series CoroTurn Prime
Item #: 46622338
Brand: Sandvik Coromant
Model #: 7431026
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | CoroTurn Prime |
| Cutting Direction | Left Hand |
| Insert Style | CP-A1108 |
| Center to Cutting Edge (mm) | 50.00 |
| Center to Cutting Edge (Decimal Inch) | 1.9685 |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 65.00 |
| Maximum Hole Depth (Decimal Inch) | 2.5591 |
| Minimum Hole Diameter (mm) | 110.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.3307 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.48032 |
| Complete Insert Compatibility | CP-A1108 |
