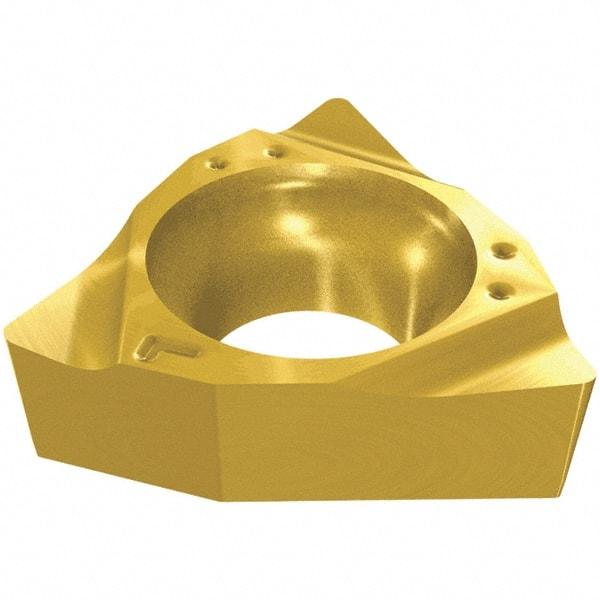

Iscar - WBMT520 Grade IC520N Carbide Turning Insert - TiCN/TiN Finish, 80° Trigon, 3.97mm Inscr Circle, 1.59mm Thick, 0.2mm Corner Radius
Item #: 46503066
Brand: Iscar
Model #: 6166989
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WBMT |
| Insert Size | 520 |
| Material | Carbide |
| Length (mm) | 2.18 |
| Length (Decimal Inch) | 0.0860 |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Thickness (Decimal Inch) | 0.0630 |
| Thickness (mm) | 1.59 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | IC520N |
| Coating | TiCN/TiN |
| ISO Number | WBMT 520L |
| Relief Angle | 5 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6166989 |
| Primary Workpiece Material | M; P |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Multi Use Application | Turning |
| Shape | Trigon |
