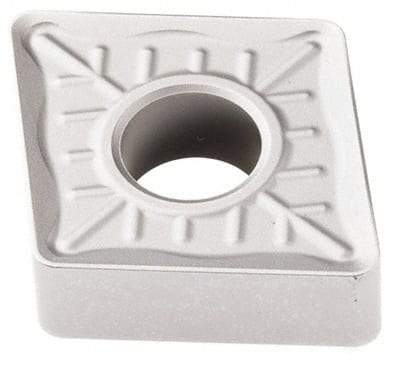

Seco - CNMM644 R7 Grade TP3501 Carbide Turning Insert - TiCN/Al2O3 Finish, Diamond, 0.77" Inscr Circle, 1/4" Thick, 0.0629" Corner Radius
Item #: 46149100
Brand: Seco
Model #: 03169509
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMM |
| Insert Size | 644 |
| Material | Carbide |
| Length (Decimal Inch) | 0.7600 |
| Inscribed Circle (Decimal Inch) | 0.7700 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0629 |
| Manufacturer's Grade | TP3501 |
| Coating | TiCN/Al2O3 |
| Material Grade | C4/C5 |
| Chip Breaker | R7 |
| Insert Length (Decimal Inch) | 0.7600 |
| Hole Diameter (Decimal Inch) | 0.3100 |
| Rake | Negative |
| Rake Angle | 17 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
