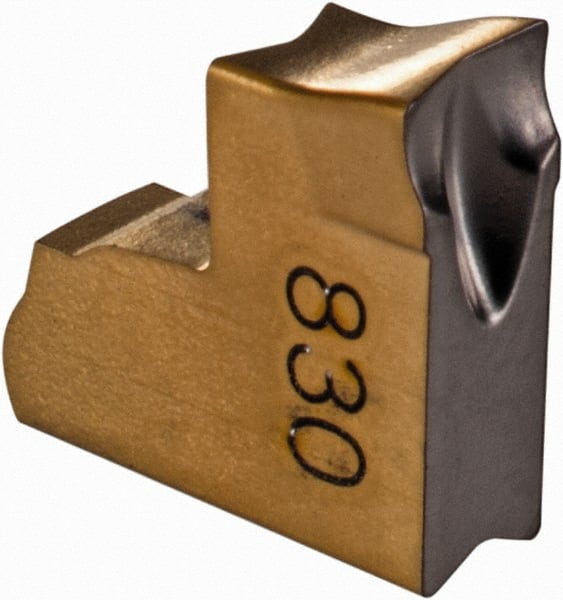

TAGR3J-6D IC830 Carbide Cutoff Insert TiN/TiAlN Finish, 6° RH Lead Angle, 3mm Cutting Width, Series Tang-Grip
Item #: 45896453
Brand: Iscar
Model #: 6011395
Product Specifications
| Insert Style | TAGR |
| Insert Size Code | 3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC830 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Insert Holding Method | Self Grip |
| Lead Angle Direction | Right Hand |
| Insert Hand | Right Hand |
| Lead Angle | 6 |
| Relief Angle | 7.00 |
| Chipbreaker | J |
| Multi-use Tool | No |
| Cutting Tool Application | Parting |
| Series | Tang-Grip |
| Coating Process | PVD |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | TAG R3J-6D |
| Full Radius | No |
| Coating/Finish | TiN; TiAlN |
| Single Or Double End | Single |
