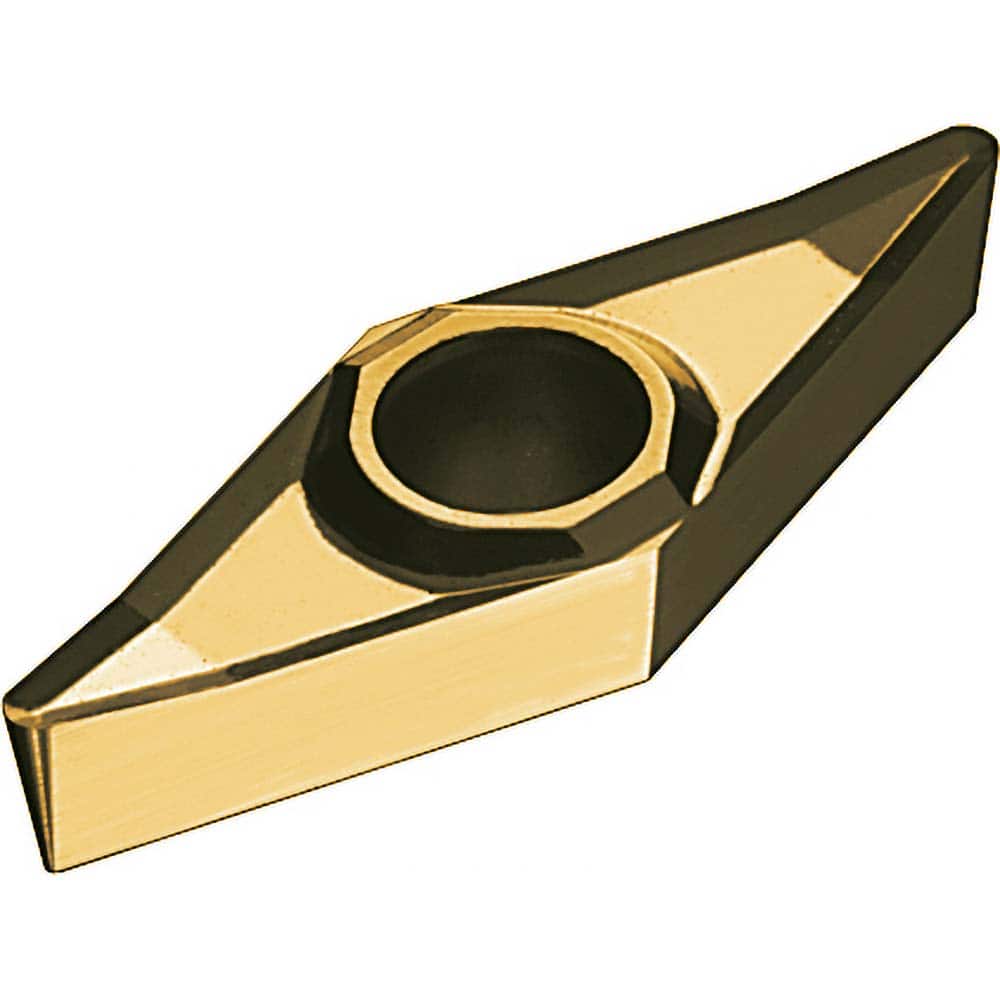

Arno - VCGT330.5FN-ALU AK20 Carbide Turning Insert
Item #: 45885738
Brand: Arno
Model #: 28447
Product Specifications
| Insert Style | VCGT |
| Insert Size | 330.5 |
| Material | Carbide |
| Width (mm) | 9.53 |
| Length (mm) | 16.60 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 4.7600 |
| Manufacturer's Grade | AK20 |
| Coating | Uncoated |
| Chip Breaker | ALU |
| Insert Length (mm) | 16.60 |
| Hole Diameter (Decimal Inch) | 4.4000 |
| ISO Number | VCGT 160402FN-ALU AK20 |
| Rake | Positive |
| Relief Angle | 7.000 |
| Proprietary Coating Designation | Uncoated |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | VCGT 160402FN-ALU |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | K; S |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Finish/Coating | Uncoated |
| Corner Radius (mm) | 0.20 |
| Shape | Diamond |
