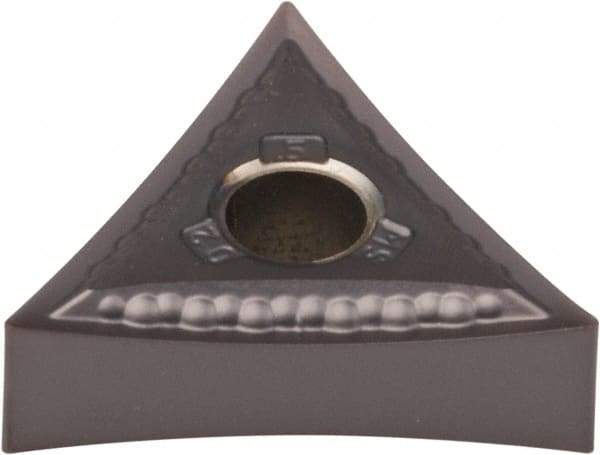

Kennametal - TNMG330.5 MS Grade KCU25 Carbide Turning Insert - AlTiN Finish, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 0.008" Corner Radius
Item #: 45856119
Brand: Kennametal
Model #: 4121695
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 330.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Chip Breaker | MS |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | TNMG160402MS |
| Relief Angle | 0 |
| Manufacturers Catalog Number | TNMG3305MS |
| Included Angle | 60 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
