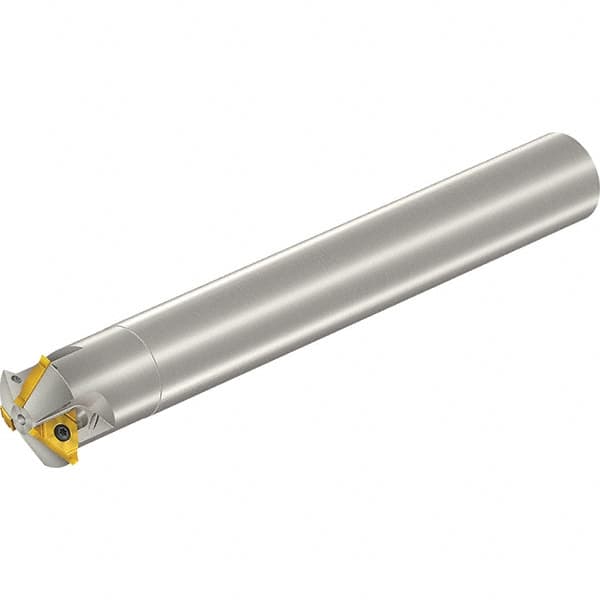

Vargus - 26mm Cut Diam, 105mm Max Hole Depth, 20mm Shank Diam, Internal/External Indexable Thread Mill - Insert Style 2UI, 1/4" Insert Size, 3 Inserts, Toolholder Style TM SC C, 186mm OAL
Item #: 45836046
Brand: Vargus
Model #: 67757
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 26 |
| Maximum Hole Depth (mm) | 105.00 |
| Insert Style | 2UI |
| Insert Size (Decimal Inch) | 0.2500 |
| Toolholder Style | TM SC C |
| Shank Diameter (mm) | 20.00 |
| Overall Length (mm) | 186.00 |
| Number of Threading Inserts | 3 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Carbide |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Neck Diameter (mm) | 20.00 |
