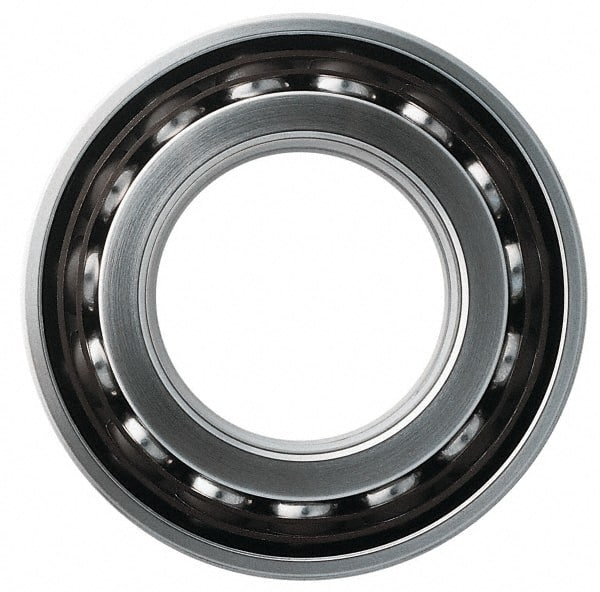

SKF - Radial Ball Bearings; Type: Angular Contact ; Style: Open ; Bore Diameter (mm): 85.00 ; Outside Diameter (mm): 180.00 ; Outside Diameter (Decimal Inch): 7.0900 ; Width (Decimal Inch): 2.8700
Item #: 45673563
Brand: SKF
Model #: 3317 A
Product Specifications
Radial Ball Bearings; Type: Angular Contact ; Style: Open ; Bore Diameter (mm): 85.00 ; Outside Diameter (mm): 180.00 ; Outside Diameter (Decimal Inch): 7.0900 ; Width (Decimal Inch): 2.8700
| Type | Angular Contact |
| Style | Open |
| Bore Diameter (mm) | 85.00 |
| Outside Diameter (mm) | 180.00 |
| Outside Diameter (Decimal Inch) | 7.0900 |
| Width (Decimal Inch) | 2.8700 |
| Width (mm) | 73.00 |
| Flange Type | Without Flange |
| Number of Rows | 2 |
| Bore Type | Round |
| Contact Angle | 30 |
| Snap Ring Included | Without Snap Ring |
| Static Load Capacity (Lb.) | 176000 |
| Dynamic Load Capacity (Lb.) | 195000 |
| Maximum RPM | 3200 |
