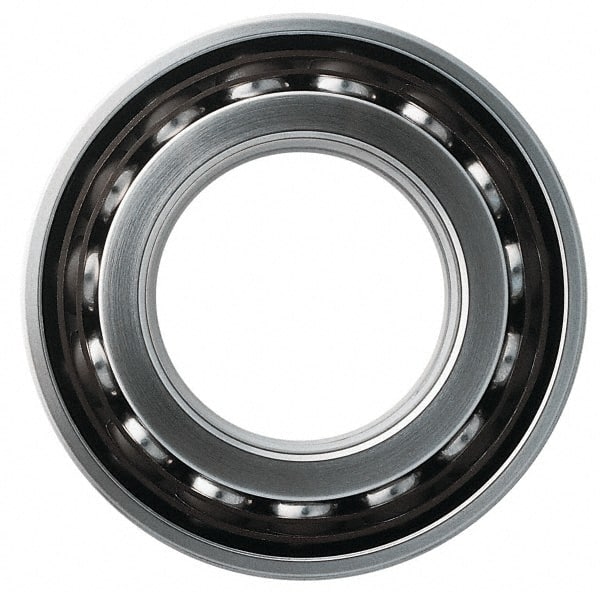

SKF - Radial Ball Bearings; Type: Angular Contact ; Style: Open ; Bore Diameter (mm): 80.00 ; Outside Diameter (mm): 170.00 ; Outside Diameter (Decimal Inch): 6.6900 ; Width (Decimal Inch): 2.6900
Item #: 45673548
Brand: SKF
Model #: 3316 A
Product Specifications
Radial Ball Bearings; Type: Angular Contact ; Style: Open ; Bore Diameter (mm): 80.00 ; Outside Diameter (mm): 170.00 ; Outside Diameter (Decimal Inch): 6.6900 ; Width (Decimal Inch): 2.6900
| Type | Angular Contact |
| Style | Open |
| Bore Diameter (mm) | 80.00 |
| Outside Diameter (mm) | 170.00 |
| Outside Diameter (Decimal Inch) | 6.6900 |
| Width (Decimal Inch) | 2.6900 |
| Width (mm) | 68.30 |
| Flange Type | Without Flange |
| Number of Rows | 2 |
| Bore Type | Round |
| Contact Angle | 30 |
| Snap Ring Included | Without Snap Ring |
| Static Load Capacity (Lb.) | 156000 |
| Dynamic Load Capacity (Lb.) | 182000 |
| Maximum RPM | 3400 |
