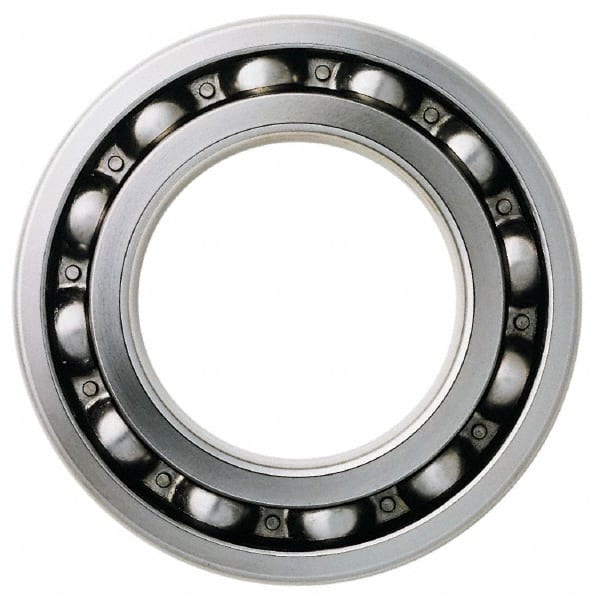

SKF - Radial Ball Bearings; Type: Deep Groove ; Style: Open ; Bore Diameter (mm): 120.00 ; Outside Diameter (mm): 215.00 ; Outside Diameter (Decimal Inch): 8.4600 ; Width (Decimal Inch): 1.5700
Item #: 45667912
Brand: SKF
Model #: 6224 JEM
Product Specifications
Radial Ball Bearings; Type: Deep Groove ; Style: Open ; Bore Diameter (mm): 120.00 ; Outside Diameter (mm): 215.00 ; Outside Diameter (Decimal Inch): 8.4600 ; Width (Decimal Inch): 1.5700
| Type | Deep Groove |
| Style | Open |
| Bore Diameter (mm) | 120.00 |
| Outside Diameter (mm) | 215.00 |
| Outside Diameter (Decimal Inch) | 8.4600 |
| Width (Decimal Inch) | 1.5700 |
| Width (mm) | 40.00 |
| Flange Type | Without Flange |
| Number of Rows | 1 |
| Bore Type | Round |
| Housing Material | Steel |
| Snap Ring Included | Without Snap Ring |
| Static Load Capacity (Lb.) | 118000 |
| Dynamic Load Capacity (Lb.) | 146000 |
| ABEC Scale | ABEC-3 |
| Maximum RPM | 3400 |
