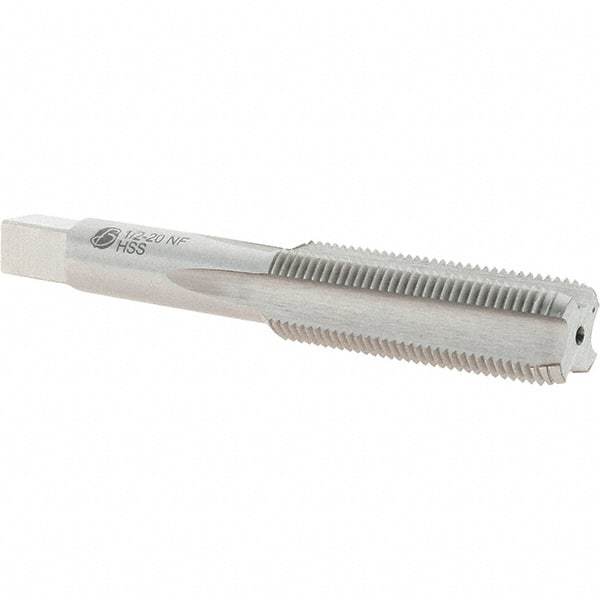

Import - 1/2-20 UNF, H3, 4 Flute, Plug Chamfer, Bright Finish, High Speed Steel Hand STI Tap - 3-19/32" OAL, 1-21/32" Thread Length
Item #: 45660313
Brand: Import
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/2-20 |
| Thread Limit | H3 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Finish/Coating | Bright |
| Overall Length (Inch) | 3-19/32 |
| Thread Standard | UNF |
| Thread Length (Inch) | 1-21/32 |
| Material | High Speed Steel |
