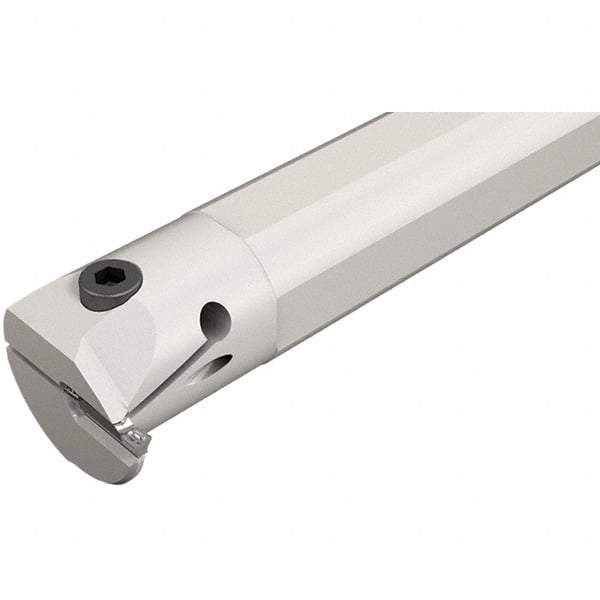

Iscar - HELII, Internal, Right Hand, 10mm Max Depth of Cut, 5 to 5mm Groove Width, Indexable Grooving Tool Holder - GRIP Insert Compatibility, 25mm Shank Width, 160mm OAL, Through Coolant
Item #: 45614955
Brand: Iscar
Model #: 2500460
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Toolholder Style | HELII |
| Insert Compatibility | GRIP |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Heli-Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Profiling |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 22.70 |
| Center to Cutting Edge (Decimal Inch) | 0.8937 |
| Complete Insert Compatibility | GRIP 5005Y; GRIP 5008Y; GRIP 5025Y |
| Minimum BoreDiameter (mm) | 43.00 |
