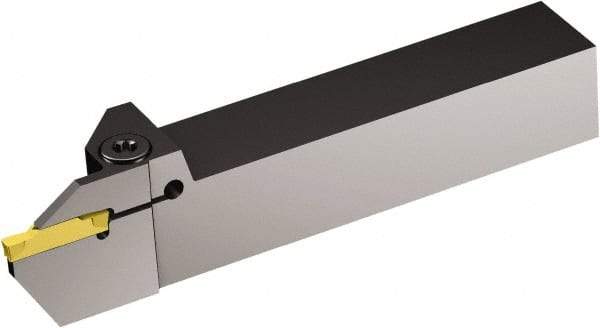

Sandvik Coromant - External Thread, 0.79" Max Depth of Cut, 2.39mm Min Groove Width, 5" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, N123F2-0250-CM Insert Style, RF123..B Toolholder Style, Series CoroCut 1-2
Item #: 45609237
Brand: Sandvik Coromant
Model #: 5740899
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 20.07 |
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Minimum Groove Width (Decimal Inch) | 0.0941 |
| Minimum Groove Width (mm) | 2.39 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Maximum Groove Width (mm) | 3.18 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 127.00 |
| Series | CoroCut 1-2 |
| Toolholder Style | RF123..B |
| Insert Compatibility | N123F2-0250-CM |
| Shank Height (mm) | 19.05 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| Head Height (mm) | 19.05 |
| Head Height (Decimal Inch) | 0.7500 |
| Head Length (mm) | 19.05 |
| Head Length (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 3.4250 |
| Shank Length (mm) | 87.00 |
| Manufacturers Catalog Number | RF123F079-12B |
