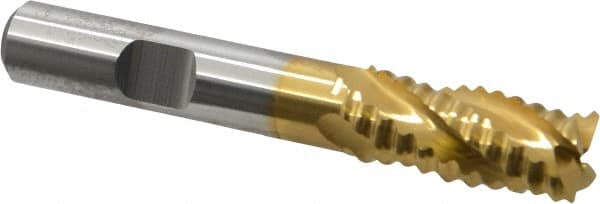

Niagara Cutter - 7/16" Diam, Coarse Pitch, 1" LOC, 4 Flute Cobalt Roughing Square End Mill - TiN Finish, 2-11/16" OAL, 3/8" Shank Diam, Single End, 30° Helix
Item #: 45523495
Brand: Niagara Cutter
Model #: N71140
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 7/16 |
| Mill Diameter (Decimal Inch) | 0.4375 |
| Number of Flutes | 4 |
| Pitch | Coarse |
| Length of Cut (Inch) | 1 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 3/8 |
| End Type | Square End |
| Material | Cobalt |
| Finish/Coating | TiN |
| Overall Length (Inch) | 2-11/16 |
| Centercutting | NonCenter Cutting |
| Helix Angle | 30.00 |
| Extended Reach | No |
| Material Grade | M42 |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Mill Diameter Tolerance (Decimal Inch) | +0.003/-0.000 |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0005 |
| Overall Length Tolerance (Decimal Inch) | +0.062/-0.000 |
| Series/List | REM710 |
