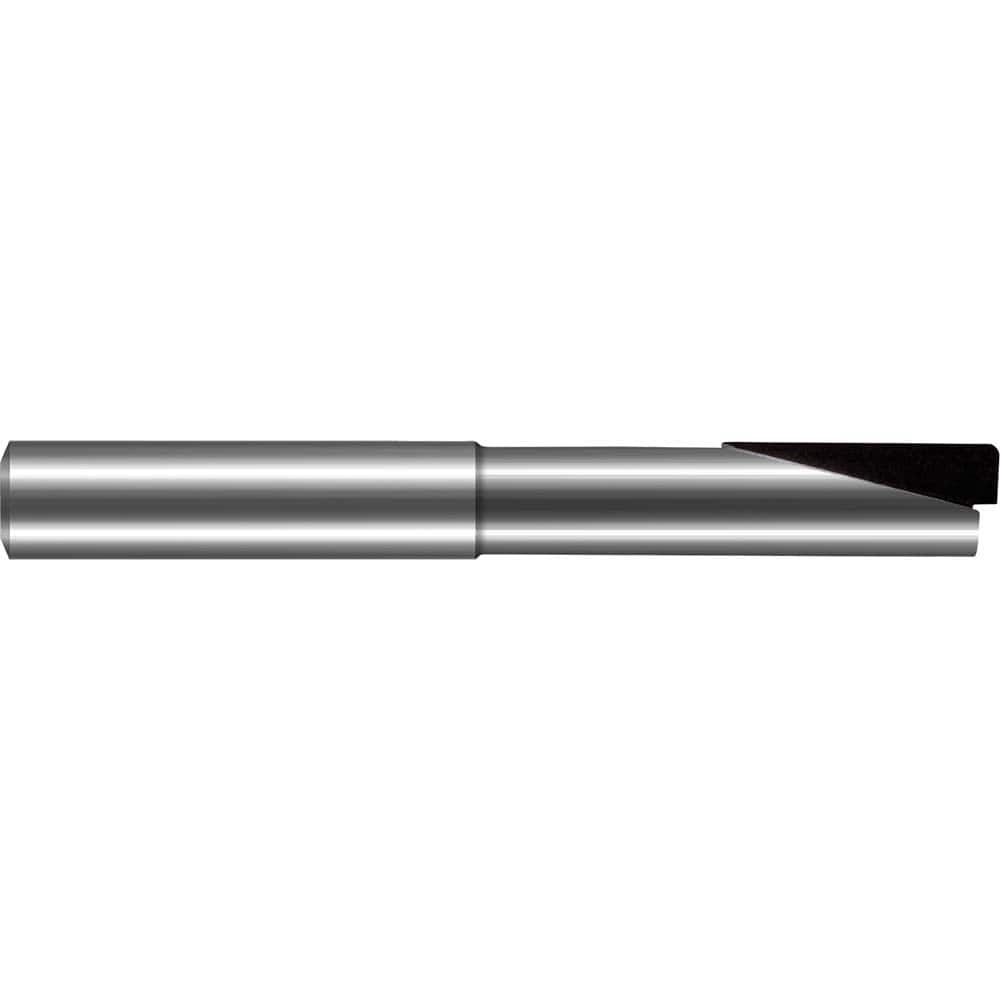

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 3/32 ; Mill Diameter (Decimal Inch): 0.0930 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0100 ; Number of Flutes: 1 ; Material: Brazed Solid Carbide
Item #: 45488855
Brand: Harvey Tool
Model #: 12206
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 3/32 ; Mill Diameter (Decimal Inch): 0.0930 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0100 ; Number of Flutes: 1 ; Material: Brazed Solid Carbide
| Mill Diameter (Inch) | 3/32 |
| Mill Diameter (Decimal Inch) | 0.0930 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number of Flutes | 1 |
| Material | Brazed Solid Carbide |
| Finish/Coating | Polycrystaline Diamond |
| Length of Cut (Inch) | 3/16 |
| Length of Cut (Decimal Inch) | 0.1870 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 0 |
| Variable Helix | No |
| Reach Length (Inch) | 3/8 |
| Reach Length (Decimal Inch) | 0.3750 |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Diamond End Mills for Non-Ferrous Materials - PCD Diamond - Corner Radius |
