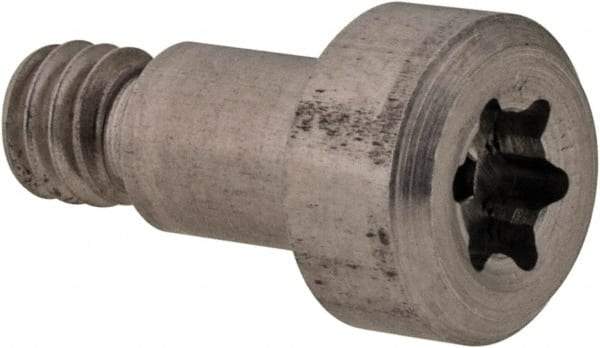

Made in USA - 3/16" Shoulder Diam x 1/4" Shoulder Length, #8-32 UNC, Torx Shoulder Screw - 416 Stainless Steel, Uncoated, 5/32" Head Height x 5/16" Head Diam
Item #: 45449154
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Torx drive types are also known as star drive fasteners. They have a six-point star recess in the head that increases torque exertion, prevents cam out and boosts fastener life.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Shoulder Screw |
| System of Measurement | Inch |
| Shoulder Diameter (Inch) | 3/16 |
| Shoulder Diameter (Decimal Inch) | 0.1870 |
| Thread Size | #8-32 |
| Shoulder Length (Inch) | 1/4 |
| Drive Type | Torx |
| Material Grade | 416 |
| Material | Stainless Steel |
| Finish/Coating | Uncoated |
| Head Height (Decimal Inch) | 0.1563 |
| Head Height (Inch) | 5/32 |
| Thread Standard | UNC |
| Head Diameter (Decimal Inch) | 0.3125 |
| Head Diameter (Inch) | 5/16 |
| Torx Drive Size | T25 |
| Thread Depth (Inch) | 3/16 |
