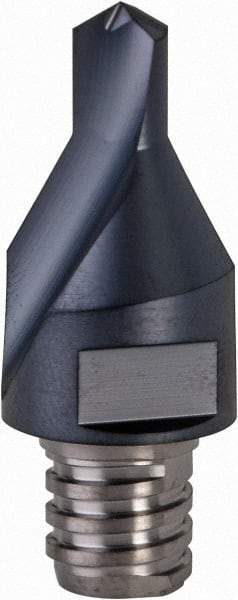

Iscar - MM ECS Grade IC908 Carbide Center Drill Milling Tip Insert - TiAlN Finish, 1 Flute, 6.46mm Cutting Diam, 8.9mm Depth of Cut
Item #: 45446341
Brand: Iscar
Model #: 5622353
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM ECS |
| Milling Tip Type | Center Drill |
| Material | Carbide |
| Cutting Diameter (mm) | 6.46 |
| Cutting Diameter (Decimal Inch) | 0.2543 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 8.90 |
| Depth of Cut (Decimal Inch) | 0.3504 |
| Number of Flutes | 1 |
| Coating | TiAlN |
| Milling Tip Full Description | Center Drilling |
| Coating Process | PVD |
| Thread Size | T10 |
| Included Angle | 120 |
