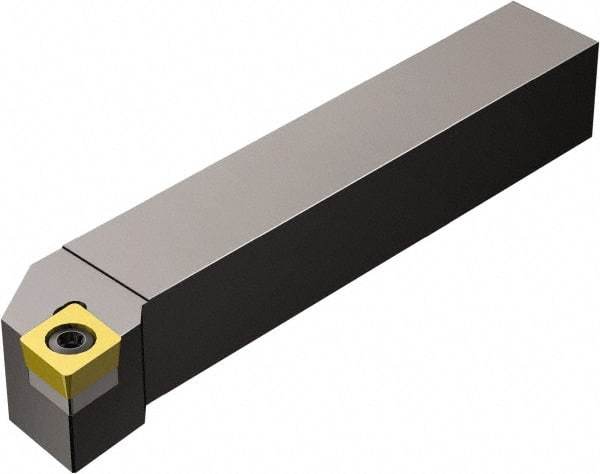

Sandvik Coromant - SCLCR, Right Hand Cut, -5° Lead Angle, 3/4" Shank Height x 3/4" Shank Width, Neutral Rake Indexable Turning Toolholder - 4-1/2" OAL, CCMT 32.52 Insert Compatibility, Series CoroTurn 107
Item #: 45425634
Brand: Sandvik Coromant
Model #: 5748755
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SCLCR |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | CoroTurn 107 |
| Lead Angle | -5 |
| Shank Width (Inch) | 3/4 |
| Shank Width (mm) | 19.05 |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (mm) | 114.30 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Compatibility | CCMT 32.52 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Facing |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 114.30 |
| Back of Bar to Cutting Edge (Inch) | 4-1/2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.5000 |
| Head Length (mm) | 16.10 |
| Head Length (Decimal Inch) | 0.6339 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Width (Inch) | 3/8 |
| Insert Width (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
