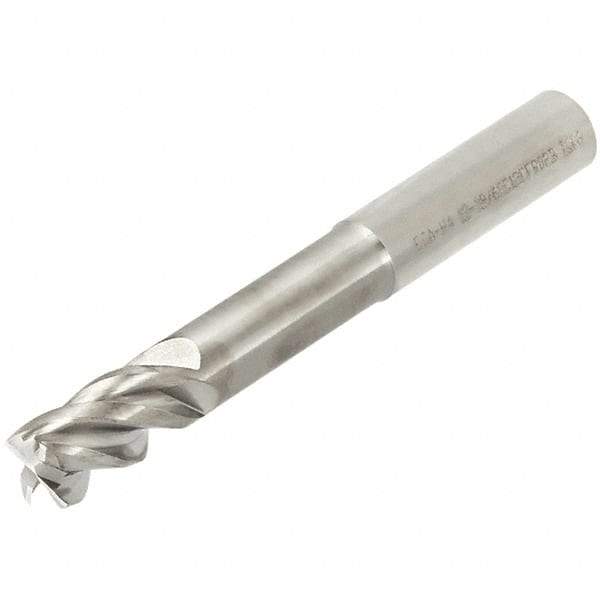

Iscar - 8mm, 4 Flute, Single End, Solid Carbide, 0.2mm Corner Radius End Mill - Right Hand Flute, 12mm LOC, Right Hand Cut, 40mm Extended Reach
Item #: 45396900
Brand: Iscar
Model #: 5623228
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 8.00 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.200 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Length of Cut (mm) | 12.00 |
| Length of Cut (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 8.00 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Reach Length (mm) | 40.00 |
| Single or Double End | Single |
| Centercutting | No |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | -0.025 to 0.047 |
| Shank Diameter Tolerance (mm) | 0.000/-0.009 |
| Extended Reach | Yes |
