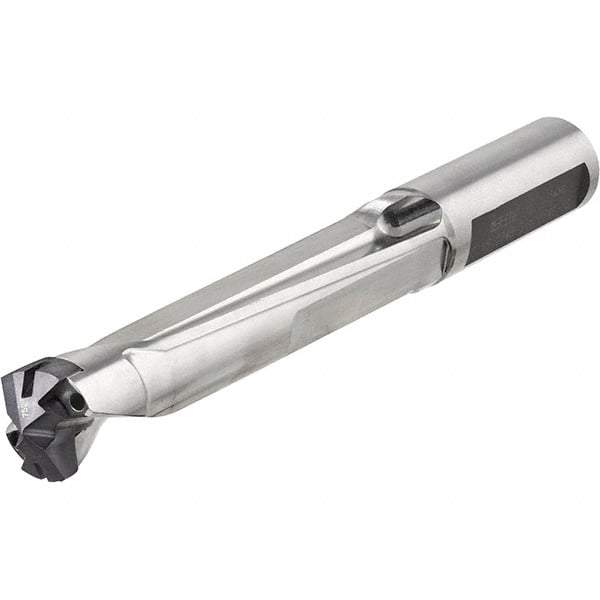

Iscar - 10mm to 10.4mm Diam, 3xD, 30mm Max Depth, 10mm Shank Diam, 86.2mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 10 Seat Size, 45390390 Toolholder, Series UniSumoCham
Item #: 45390390
Brand: Iscar
Model #: 3203008
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniSumoCham |
| Minimum Drill Diameter (mm) | 10.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.3937 |
| Maximum Drill Diameter (mm) | 10.40 |
| Maximum Drill Diameter (Decimal Inch) | 0.4094 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.1811 |
| Maximum Drill Depth (mm) | 30.00 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 10 |
| Toolholder Style | DCNS |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 45.20 |
| Body Length (Decimal Inch) | 1.7795 |
| Overall Length (mm) | 86.20 |
| Overall Length (Decimal Inch) | 3.3937 |
| Shank Length (mm) | 41.00 |
| Shank Length (Decimal Inch) | 1.6142 |
