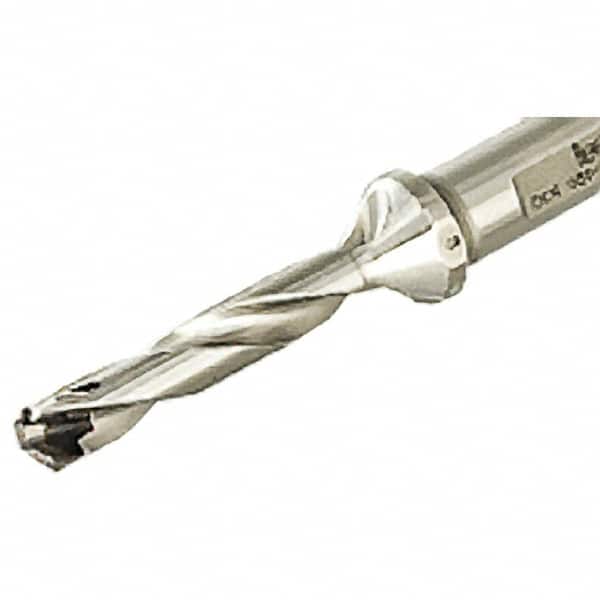

Iscar - 0.236" to 1/4" Diam, 3xD, 0.71" Max Depth, 1/2" Shank Diam, 2.61" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 6 Seat Size, 45390085 Toolholder, Series SumoCham
Item #: 45390085
Brand: Iscar
Model #: 3203271
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.2360 |
| Maximum Drill Diameter (Decimal Inch) | 0.2500 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 0.7100 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 6 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 0.8400 |
| Overall Length (Decimal Inch) | 2.6100 |
| Shank Length (Decimal Inch) | 1.7700 |
