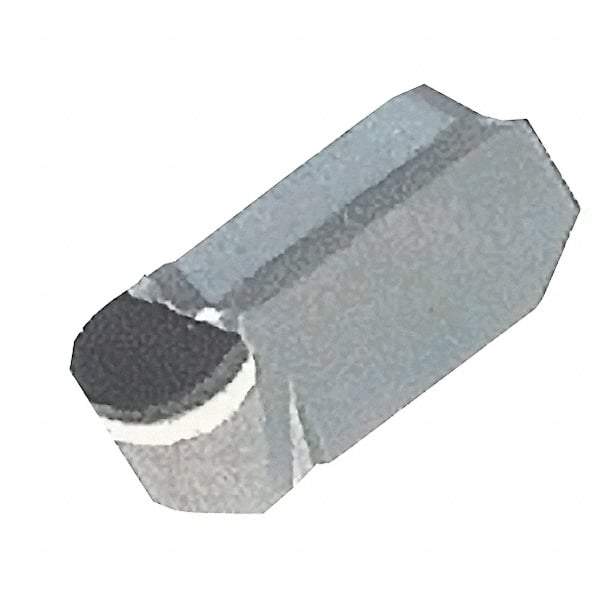

Iscar - 400K200GITM K Grade IB10H, 4mm Cutting Width PCBN Grooving Insert - 0.4mm Max Depth of Cut, Neutral, 2mm Corner Radius, Uncoated
Item #: 45388774
Brand: Iscar
Model #: 6404171
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | GITM |
| Insert Size | 400K200 |
| Material | PCBN |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 0.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | IB10H |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Lead Angle | 20 |
| Relief Angle | 7 |
| Chipbreaker | K |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Overall Length (mm) | 15.00 |
| Overall Length (Decimal Inch) | 0.5906 |
| Series | Cut Grip |
