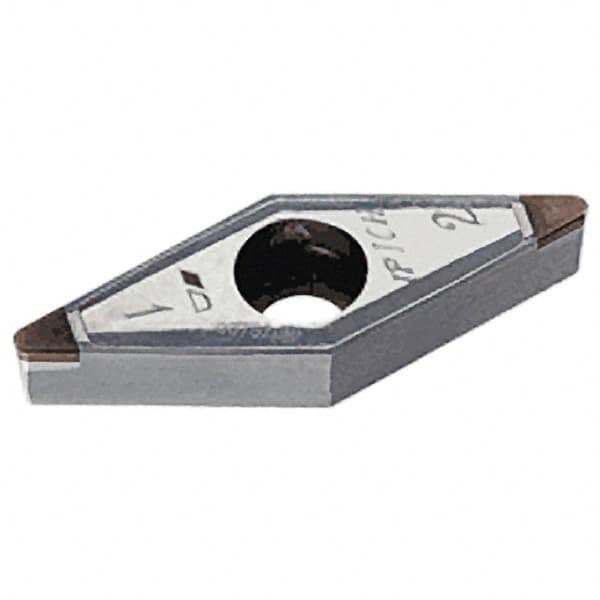

Iscar - VBMW332 M2 Grade IB20H PCBN Turning Insert - Uncoated, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 45388238
Brand: Iscar
Model #: 6820955
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMW |
| Insert Size | 332 |
| Material | PCBN |
| Length (mm) | 16.60 |
| Length (Decimal Inch) | 0.6535 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | IB20H |
| Coating | Uncoated |
| Chip Breaker | M2 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Relief Angle | 5 |
| Included Angle | 35 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 0.39 |
| Maximum Depth of Cut (Decimal Inch) | 0.0154 |
| Insert Holding Method | Screw |
| Shape | Diamond |
