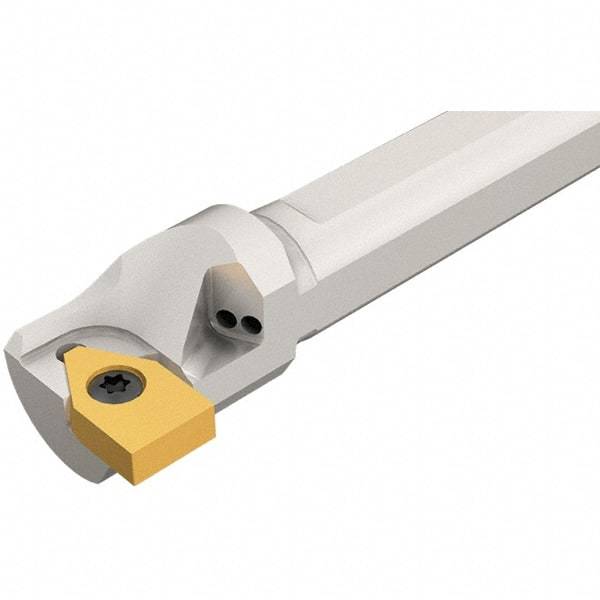

Iscar - XNUW 1305, 90° Lead Angle SXCI Internal Right Hand Indexable Profiling Toolholder - 1-1/4" Shank Width, 8" Long, Through Coolant
Item #: 45387818
Brand: Iscar
Model #: 2801464
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Rake | Neutral |
| Insert Compatibility | XNUW 1305 |
| Toolholder Style | SXCI |
| Series | V-Lock |
| Through Coolant | Yes |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 8.0000 |
| Insert Holding Method | Screw |
| Rake Angle | 0 |
| Lead Angle | 90 |
| Minimum Hole Diameter (Decimal Inch) | 1.4600 |
| Center to Cutting Edge (Decimal Inch) | 0.7900 |
| Head Length (Decimal Inch) | 1.4000 |
| Maximum Hole Depth (Decimal Inch) | 0.1570 |
| Insert Inscribed Circle (Decimal Inch) | 0.2170 |
| Complete Insert Compatibility | XNUW 1305-05 |
