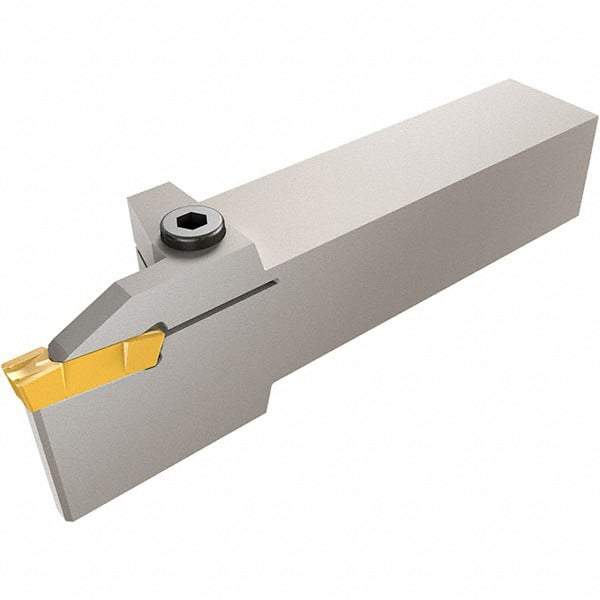

Iscar - GHD, External, Right Hand, 10mm Max Depth of Cut, 4 to 5mm Groove Width, Indexable Grooving Tool Holder - TIP Insert Compatibility, 32mm Shank Height, 32mm Shank Width, 150mm OAL
Item #: 45383023
Brand: Iscar
Model #: 2800175
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 10.00 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (mm) | 150.00 |
| Toolholder Style | GHD |
| Insert Compatibility | TIP |
| Shank Height (mm) | 32.00 |
| Shank Width/Diameter (mm) | 32.00 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 30.40 |
| Head Length (mm) | 27.00 |
| Complete Insert Compatibility | TIP-MT; TIP-P-BSPT; TIP-P-BSW; TIP-P-NPT; TIP-P-UN |
