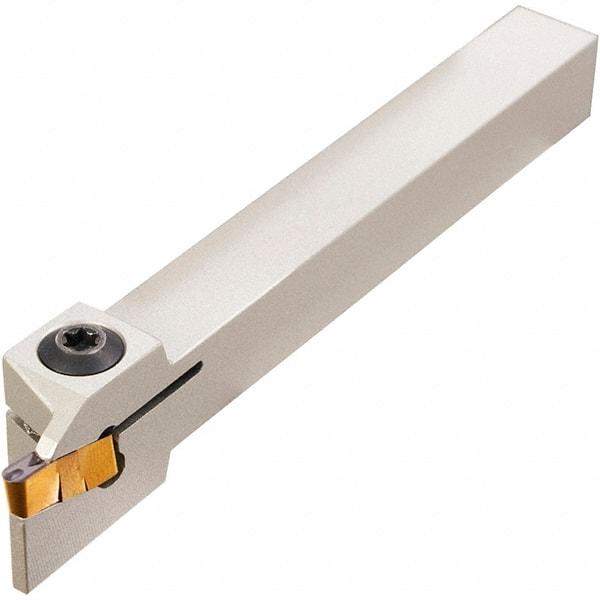

Iscar - GHD, External, Left Hand, 16.5mm Max Depth of Cut, 7 to 10mm Groove Width, Indexable Grooving Tool Holder - GI.., GPV Insert Compatibility, 32mm Shank Height, 32mm Shank Width, 170mm OAL
Item #: 45382942
Brand: Iscar
Model #: 2801033
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 16.50 |
| Minimum Groove Width (mm) | 7.00 |
| Maximum Groove Width (mm) | 10.00 |
| Overall Length (mm) | 170.00 |
| Toolholder Style | GHD |
| Insert Compatibility | GI..; GPV |
| Shank Height (mm) | 32.00 |
| Shank Width/Diameter (mm) | 32.00 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 28.80 |
| Head Length (mm) | 35.70 |
| Complete Insert Compatibility | GIMF; GIMM 8CC; GIMY; GIMY (Full Radius); GIMY-F; GITM; GITM (Full Radius); GPV |
