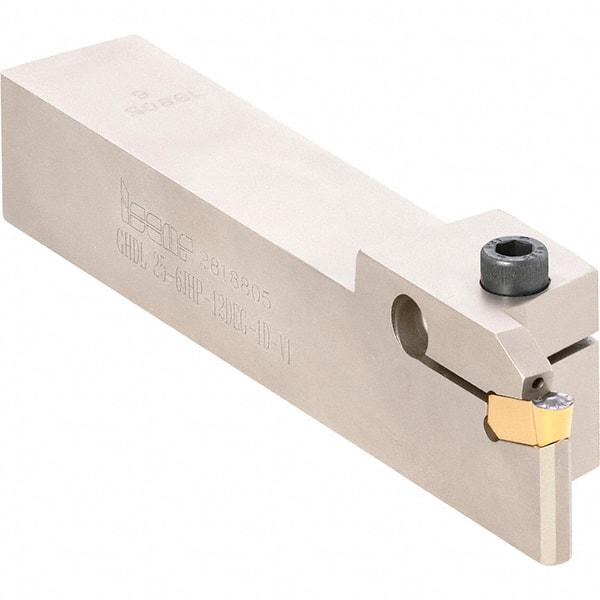

Iscar - GHD, External, Left Hand, 0.4" Max Depth of Cut, 0.157 to 0.197" Groove Width, Indexable Grooving Tool Holder - GI.., TIP Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL, Through Coolant
Item #: 45382884
Brand: Iscar
Model #: 2801795
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4000 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | GHD |
| Insert Compatibility | GI..; TIP |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Cut Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9400 |
| Head Length (Decimal Inch) | 1.7700 |
| Complete Insert Compatibility | GIA-K... |
