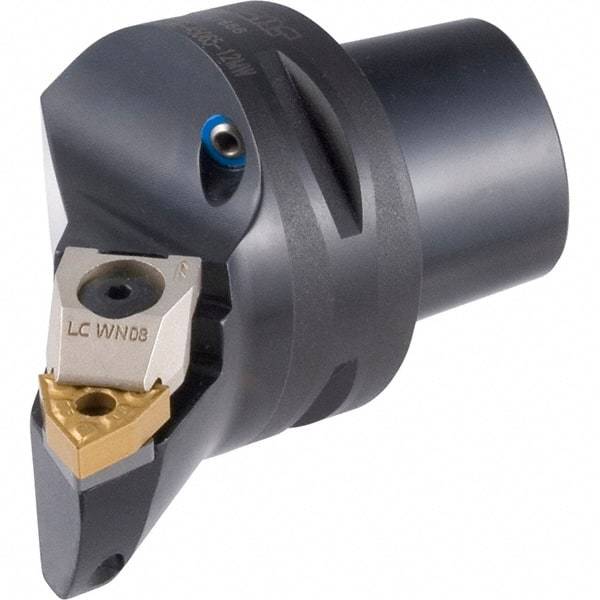

Iscar - Left Hand Cut, Size C5, WN.. Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 60mm Head Length, Through Coolant, Series Multi-Wedge
Item #: 45381910
Brand: Iscar
Model #: 3602127
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | Multi-Wedge |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 60.00 |
| Head Length/Projection (Decimal Inch) | 2.3622 |
| Insert Style | WN.. |
| Internal or External | External |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Complete Insert Compatibility | CNGA 120404-M2; CNGA 120404-R2; CNGA 120408-F2; CNGA 120408-M2; CNGA 120408-R2 |
