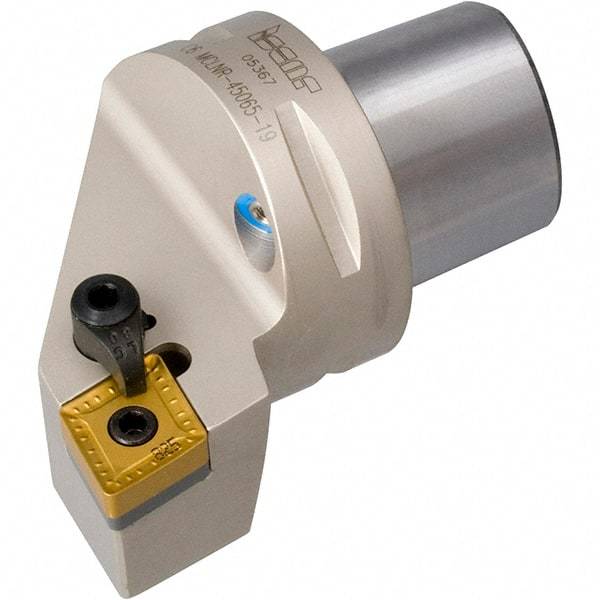

Iscar - Left Hand Cut, Size C6, CNM.. Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 45mm Ctr to Cutting Edge, 65mm Head Length, Through Coolant, Series Isoturn
Item #: 45381332
Brand: Iscar
Model #: 3602435
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | Isoturn |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5590 |
| Insert Style | CNM.. |
| Internal or External | External |
| Center to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (Decimal Inch) | 1.7717 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Complete Insert Compatibility | CNMA 190612; CNMA 190616; CNMG 190608-GN; CNMG 190612-GN; CNMG 190612-PP |
