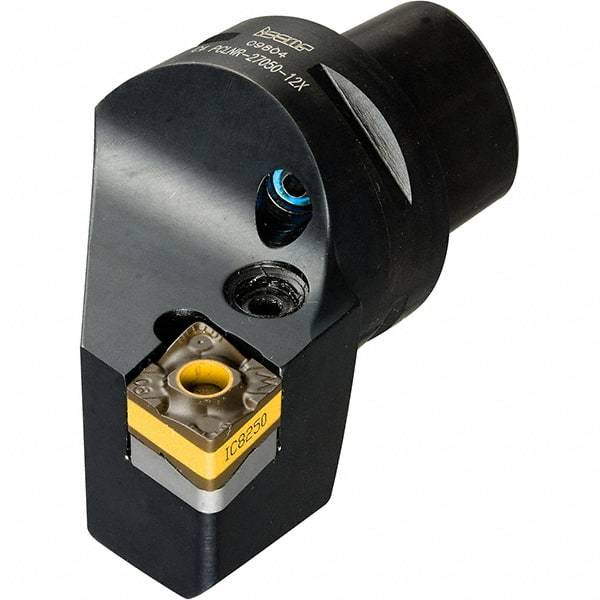

Iscar - Right Hand Cut, Size C6, CNMX Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 45mm Ctr to Cutting Edge, 65mm Head Length, Through Coolant, Series Heliturn
Item #: 45380409
Brand: Iscar
Model #: 3602915
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | Heliturn |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5590 |
| Insert Style | CNMX |
| Internal or External | External |
| Center to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (Decimal Inch) | 1.7717 |
| Insert Holding Method | Clamp |
| Through Coolant | Through Coolant |
| Complete Insert Compatibility | CNMX 160712-HTW; CNMX 160716-HTW |
