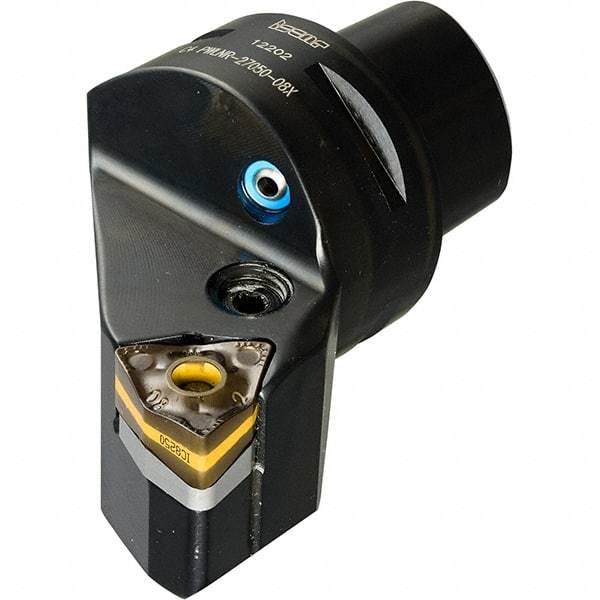

Iscar - Left Hand Cut, Size C5, WNMX Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 60mm Head Length, Through Coolant, Series Heliturn
Item #: 45380375
Brand: Iscar
Model #: 3602920
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | Heliturn |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 60.00 |
| Head Length/Projection (Decimal Inch) | 2.3622 |
| Insert Style | WNMX |
| Internal or External | External |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Holding Method | Clamp |
| Through Coolant | Through Coolant |
| Complete Insert Compatibility | WNMX 080704-M4MW; WNMX 080708-HTW; WNMX 080708-M4MW; WNMX 080712-HTW; WNMX 080716-HTW |
