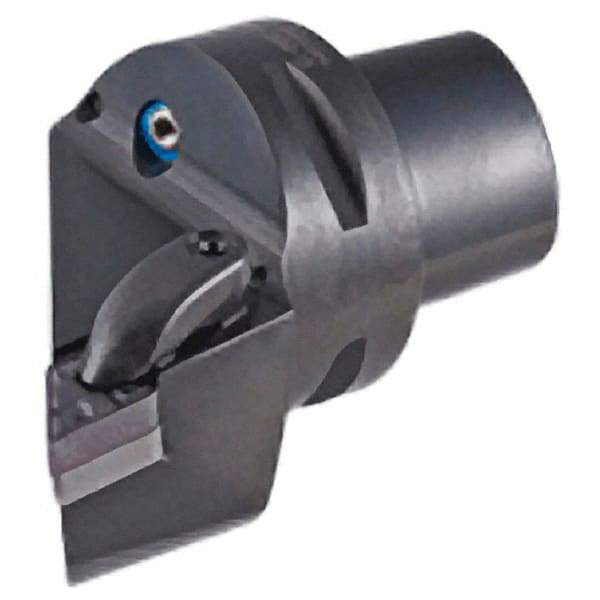

Iscar - Left Hand Cut, Size C5, DN.. Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 60mm Head Length, Through Coolant, Series Isoturn
Item #: 45379583
Brand: Iscar
Model #: 3696224
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | Isoturn |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 60.00 |
| Head Length/Projection (Decimal Inch) | 2.3622 |
| Insert Style | DN.. |
| Internal or External | External |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Complete Insert Compatibility | DNMA 150412; DNMA 150608; DNMA 150612; DNMG 150408-GN; DNMG 150412-GN |
