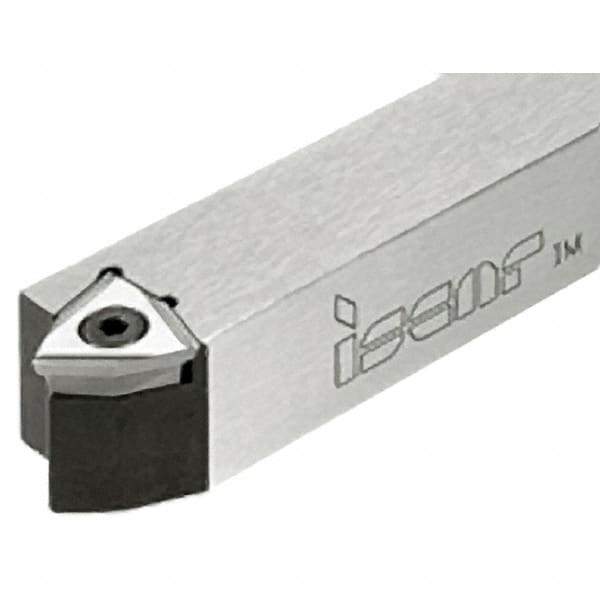

Iscar - SWDP, Left Hand Cut, 45° Lead Angle, 12mm Shank Height x 12mm Shank Width, Positive Rake Indexable Turning Toolholder - 150mm OAL, WPE.. Insert Compatibility, Series Isoturn
Item #: 45379435
Brand: Iscar
Model #: 3730128
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SWDP |
| Rake | Positive |
| Series | Isoturn |
| Lead Angle | 45 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | WPE.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 12.10 |
| Insert Inscribed Circle (Decimal Inch) | 0.3130 |
