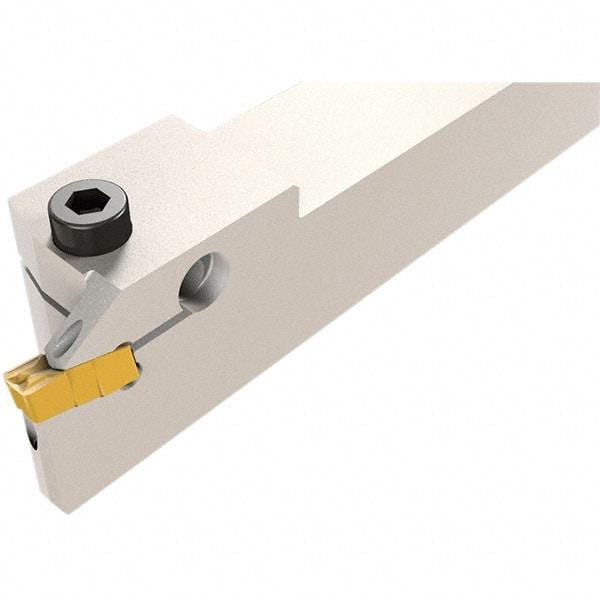

Iscar - GHD, External, Right Hand, 12mm Max Depth of Cut, 5 to 6.4mm Groove Width, Indexable Grooving Tool Holder - GI.., TIP Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 140mm OAL, Through Coolant
Item #: 45378965
Brand: Iscar
Model #: 2801711
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 12.00 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 6.40 |
| Overall Length (mm) | 140.00 |
| Toolholder Style | GHD |
| Insert Compatibility | GI..; TIP |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | Cut Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 22.90 |
| Head Length (mm) | 46.00 |
| Shank Length (mm) | 94.00 |
| Complete Insert Compatibility | GIA-K... |
