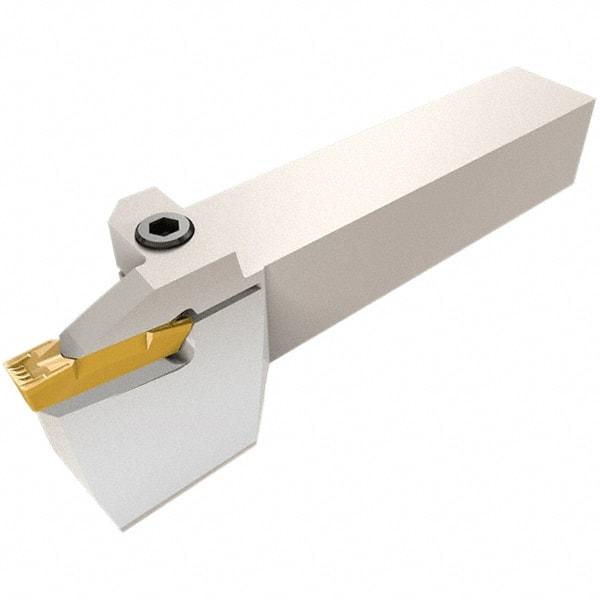

Iscar - GHFG, External, Right Hand, 25mm Max Depth of Cut, 8mm Max Groove Width, Indexable Grooving Tool Holder - GDM.., GIFG Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 45378882
Brand: Iscar
Model #: 2800674
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Groove Width (mm) | 8.00 |
| Overall Length (mm) | 150.00 |
| Toolholder Style | GHFG |
| Insert Compatibility | GDM..; GIFG |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 22.00 |
| Maximum Groove Outside Diameter (mm) | 82.00 |
| Minimum Axial Groove Inside Diameter(mm) | 63.00 |
| Head Length (mm) | 41.00 |
| Shank Length (mm) | 109.00 |
| Complete Insert Compatibility | GDMM-CC; GDMY; GDMY (Full Radius); GDMY-F; GIFG-E (W=8) |
