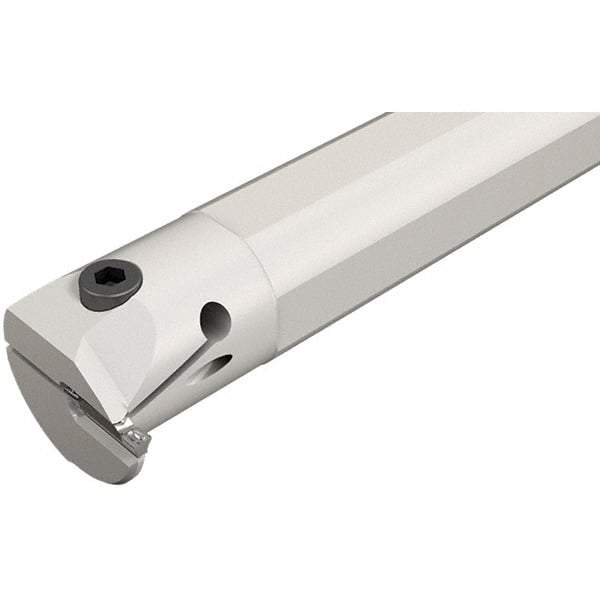

Iscar - HELI, Internal, Left Hand, 10mm Max Depth of Cut, 5mm Max Groove Width, Indexable Grooving Tool Holder - GRIP Insert Compatibility, 25mm Shank Width, 160mm OAL, Through Coolant
Item #: 45378486
Brand: Iscar
Model #: 2500461
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 10.00 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (mm) | 160.00 |
| Toolholder Style | HELI |
| Insert Compatibility | GRIP |
| Shank Width/Diameter (mm) | 25.00 |
| Series | Heli-Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 43.00 |
| Back of Bar to Cutting Edge (mm) | 22.70 |
| Complete Insert Compatibility | GRIP; GRIP (Full Radius) |
