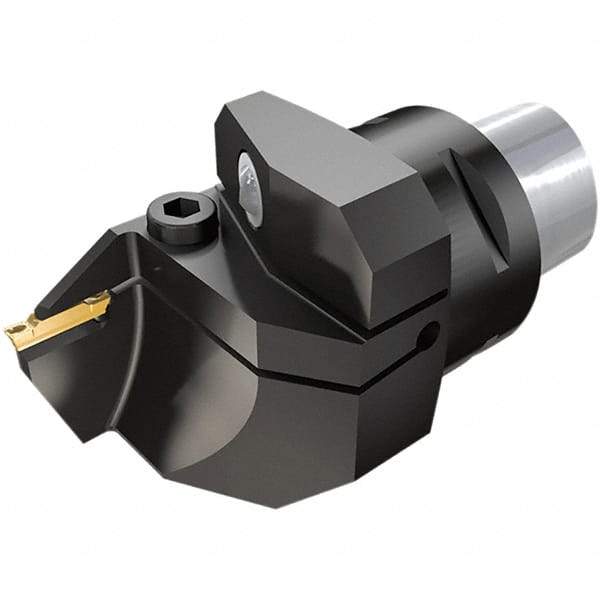

Iscar - DG.., GRIP Insert, 70mm Head Length, 4mm Min Groove Width, Modular Grooving Cutting Unit Head - Left Hand Cut, System Size C6, Series CAMFIX, Heli-Grip
Item #: 45378262
Brand: Iscar
Model #: 2500679
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | CAMFIX; Heli-Grip |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Insert Style | DG..; GRIP |
| Head Length/Projection (mm) | 70.00 |
| Head Length/Projection (Decimal Inch) | 2.7559 |
| Through Coolant | NonThrough Coolant |
| Center to Cutting Edge (mm) | 31.40 |
| Center to Cutting Edge (Decimal Inch) | 1.2362 |
| Maximum Groove Width (mm) | 4.76 |
| Maximum Groove Width (Decimal Inch) | 0.1874 |
| Complete Insert Compatibility | GRIP 4002Y; GRIP 4004Y; GRIP 4020Y; GRIP 476-080Y; GRIP 476-238Y |
| Minimum Groove Width (mm) | 4.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
