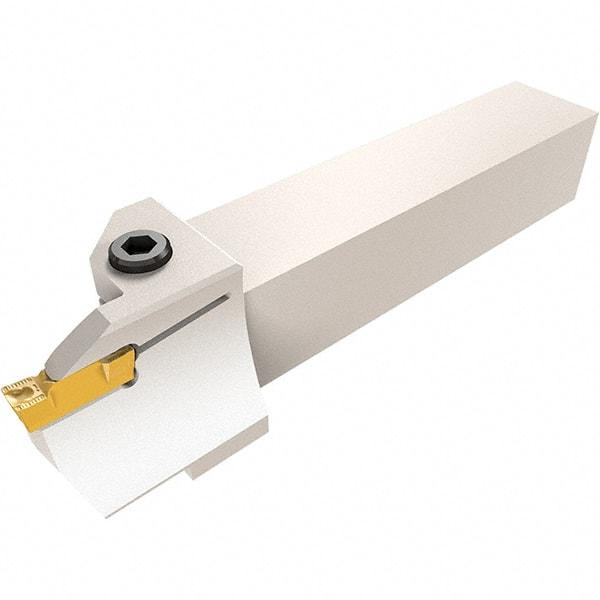

Iscar - HGH, External, Right Hand, 6mm Max Depth of Cut, 3mm Max Groove Width, Indexable Grooving Tool Holder - GRIP, HGN Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 120mm OAL
Item #: 45378171
Brand: Iscar
Model #: 2590439
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Groove Width (mm) | 3.00 |
| Overall Length (mm) | 120.00 |
| Toolholder Style | HGH |
| Insert Compatibility | GRIP; HGN |
| Shank Height (mm) | 20.00 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Maximum Groove Outside Diameter (mm) | 16.00 |
| Minimum Axial Groove Inside Diameter(mm) | 12.00 |
| Head Height (mm) | 25.00 |
| Head Length (mm) | 19.00 |
| Shank Length (mm) | 101.00 |
| Complete Insert Compatibility | GRIP; GRIP (Full Radius); HGN-C; HGN-J; HGN-UT |
