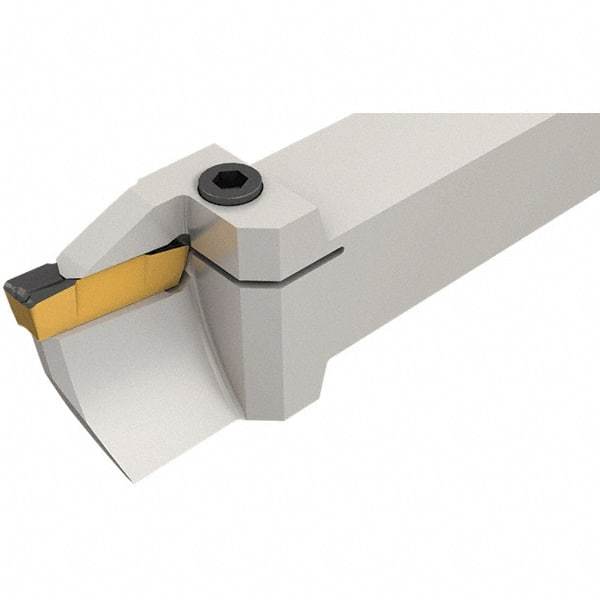

Iscar - GHFG, External, Left Hand, 8mm Max Groove Width, Indexable Grooving Tool Holder - GDM.., GI.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 45378163
Brand: Iscar
Model #: 2800207
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Groove Width (mm) | 8.00 |
| Overall Length (mm) | 150.00 |
| Toolholder Style | GHFG |
| Insert Compatibility | GDM..; GI.. |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 21.30 |
| Maximum Groove Outside Diameter (mm) | 160.00 |
| Minimum Axial Groove Inside Diameter(mm) | 105.00 |
| Head Length (mm) | 43.50 |
| Shank Length (mm) | 106.50 |
| Complete Insert Compatibility | GDMF; GDMM-CC; GDMN; GDMU; GDMY; GDMY (Full Radius); GDMY-F; GIA-K (Long Pocket); GIF (Long Pocket); GIF-E (W=8,10 Full Radius); GIF-E (W=8,10); GIFG-E (W=8); GIPA/GIDA 8 (Full Radius) |
