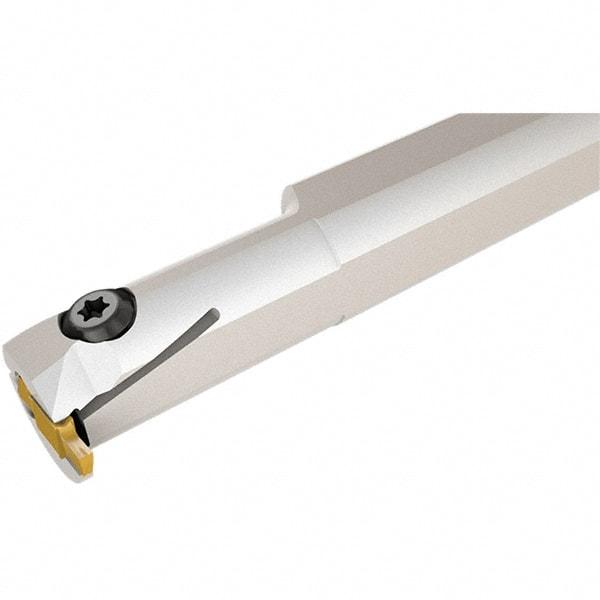

Iscar - GHI, Internal, Left Hand, 4.5mm Max Depth of Cut, 3 to 4.8mm Groove Width, Indexable Grooving Tool Holder - GI.I, TIPI Insert Compatibility, 20mm Shank Width, 160mm OAL
Item #: 45378130
Brand: Iscar
Model #: 2800298
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 4.50 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 4.80 |
| Overall Length (mm) | 160.00 |
| Toolholder Style | GHI |
| Insert Compatibility | GI.I; TIPI |
| Shank Width/Diameter (mm) | 20.00 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 20.00 |
| Center to Cutting Edge (mm) | 14.50 |
| Head Length (mm) | 25.00 |
| Shank Length (mm) | 135.00 |
| Complete Insert Compatibility | GIFI; GIFI-E; GIFI-E (Full Radius); GIMIY; GINI-E; GIPI; GIPI (Full Radius); GIPI-E; TIPI-MT; TIPI-WT |
