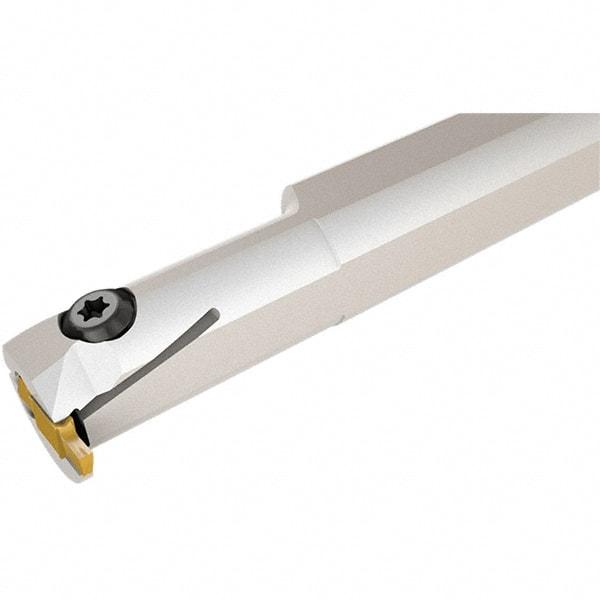

Iscar - GHI, Internal, Left Hand, 5mm Max Depth of Cut, 2.5 to 4mm Groove Width, Indexable Grooving Tool Holder - GI.I, TIPI Insert Compatibility, 32mm Shank Width, 250mm OAL
Item #: 45378114
Brand: Iscar
Model #: 2800310
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 5.00 |
| Minimum Groove Width (mm) | 2.50 |
| Maximum Groove Width (mm) | 4.00 |
| Overall Length (mm) | 250.00 |
| Toolholder Style | GHI |
| Insert Compatibility | GI.I; TIPI |
| Shank Width/Diameter (mm) | 32.00 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 38.00 |
| Center to Cutting Edge (mm) | 21.30 |
| Complete Insert Compatibility | GIFI-E; GIFI-E (Full Radius); GIMIY; GINI-E; GIPI; GIPI (Full Radius); GIPI-E; TIPI-MT; TIPI-WT |
