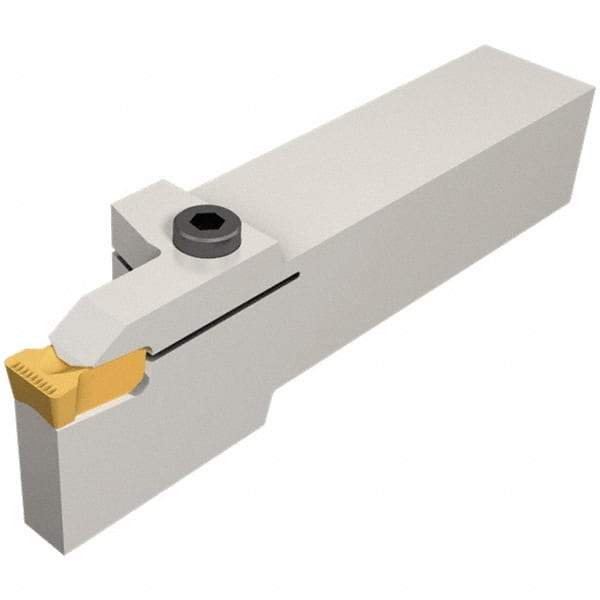

Iscar - GHD, External, Right Hand, 38mm Max Depth of Cut, 13 to 17.4mm Groove Width, Indexable Grooving Tool Holder - TIGER Insert Compatibility, 32mm Shank Height, 32mm Shank Width, 170mm OAL
Item #: 45378049
Brand: Iscar
Model #: 2800819
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 38.00 |
| Minimum Groove Width (mm) | 13.00 |
| Maximum Groove Width (mm) | 17.40 |
| Overall Length (mm) | 170.00 |
| Toolholder Style | GHD |
| Insert Compatibility | TIGER |
| Shank Height (mm) | 32.00 |
| Shank Width/Diameter (mm) | 32.00 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 26.00 |
| Head Length (mm) | 59.00 |
| Shank Length (mm) | 111.00 |
| Complete Insert Compatibility | TIGER |
