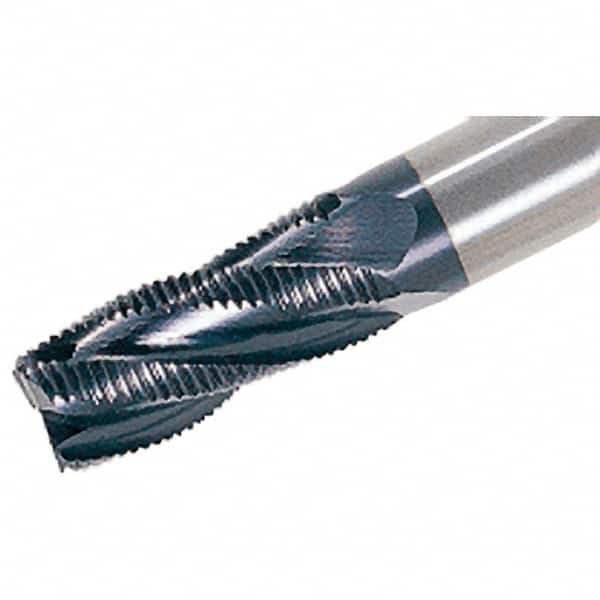

Iscar - 16mm Diam, 32mm LOC, 4 Flute Powdered Metal Roughing Square End Mill - 92mm OAL, 16mm Shank Diam, Single End, 30° Helix
Item #: 45377199
Brand: Iscar
Model #: 3121076
Exact Tooling IR#: 04
Features and Benefits
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 16.00 |
| Mill Diameter (Decimal Inch) | 0.6299 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 32.00 |
| Length of Cut (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 16.00 |
| End Type | Square End |
| Material | Powdered Metal |
| Overall Length (mm) | 92.00 |
| Centercutting | NonCenter Cutting |
| Helix Angle | 30.00 |
| Extended Reach | No |
| Coolant Induced | No |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Mill Diameter Tolerance (mm) | -0.032 to 0.059 |
| Shank Diameter Tolerance (mm) | 0.000/-0.011 |
| Chipbreaker | No |
